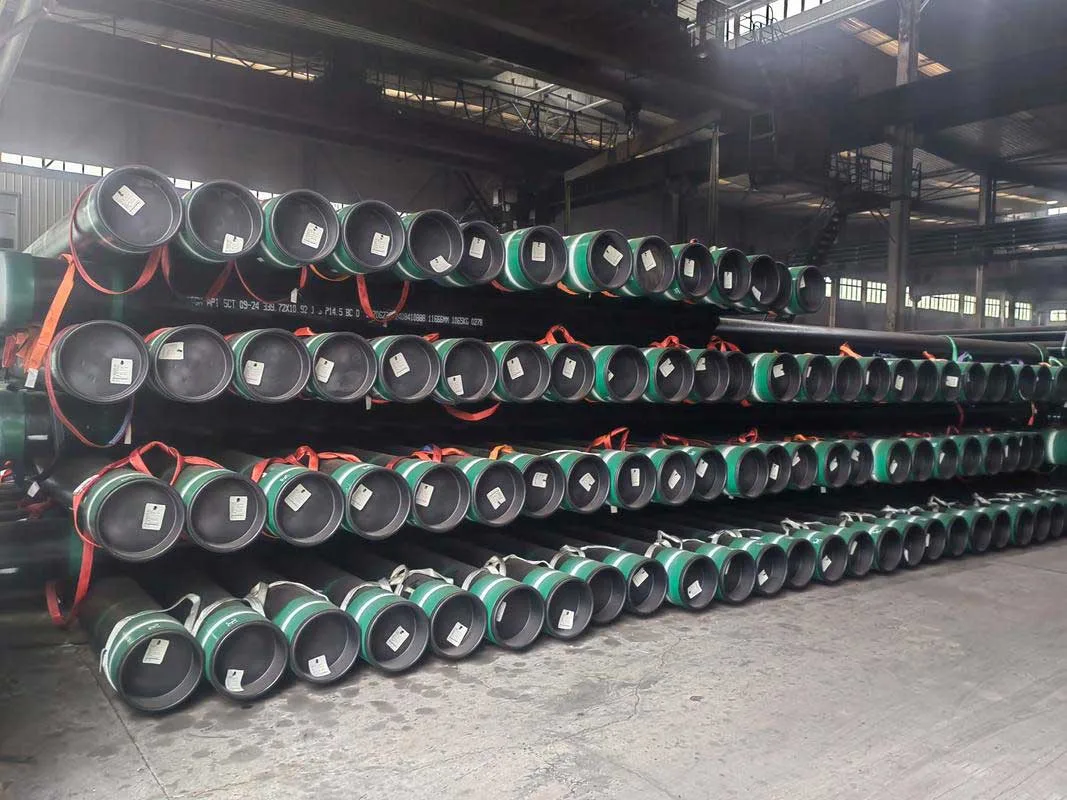

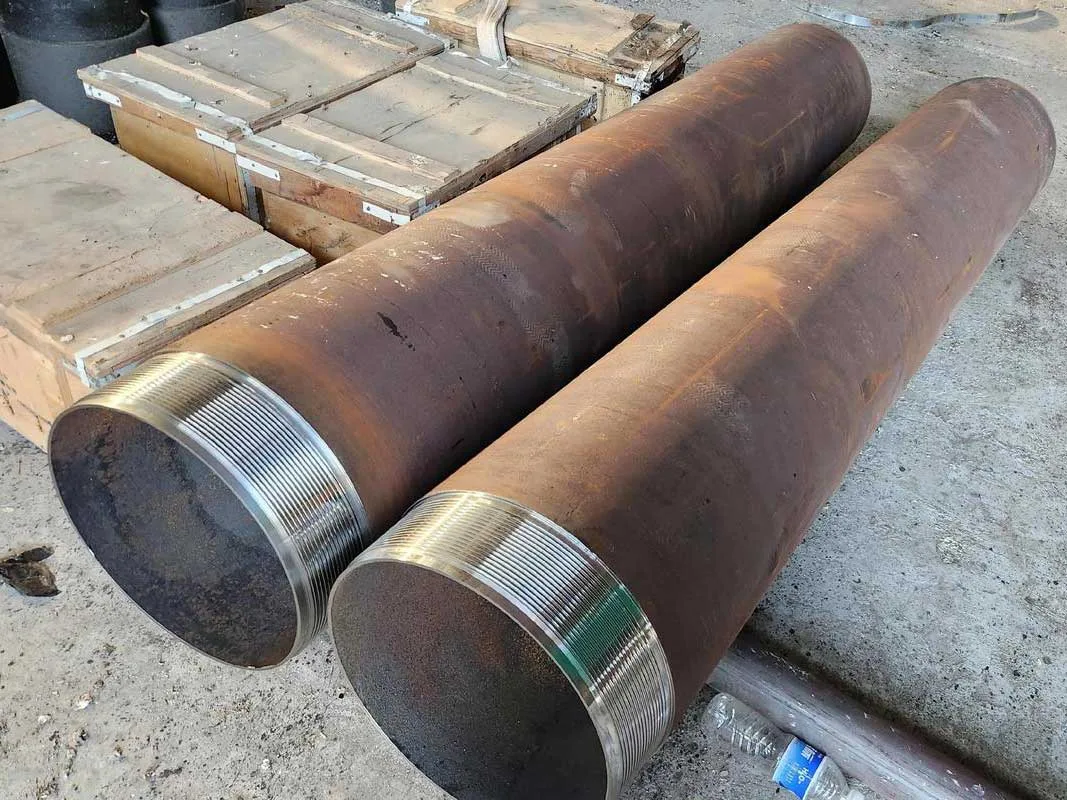

Oil casing
Oil casing is a steel pipe used to support the walls of oil and gas wells, ensuring the smooth progress of drilling operations and the normal operation of the well after completion.
I. Types and Applications
Based on their application, they can be classified into: guide casing, surface casing, technical casing, and production casing.

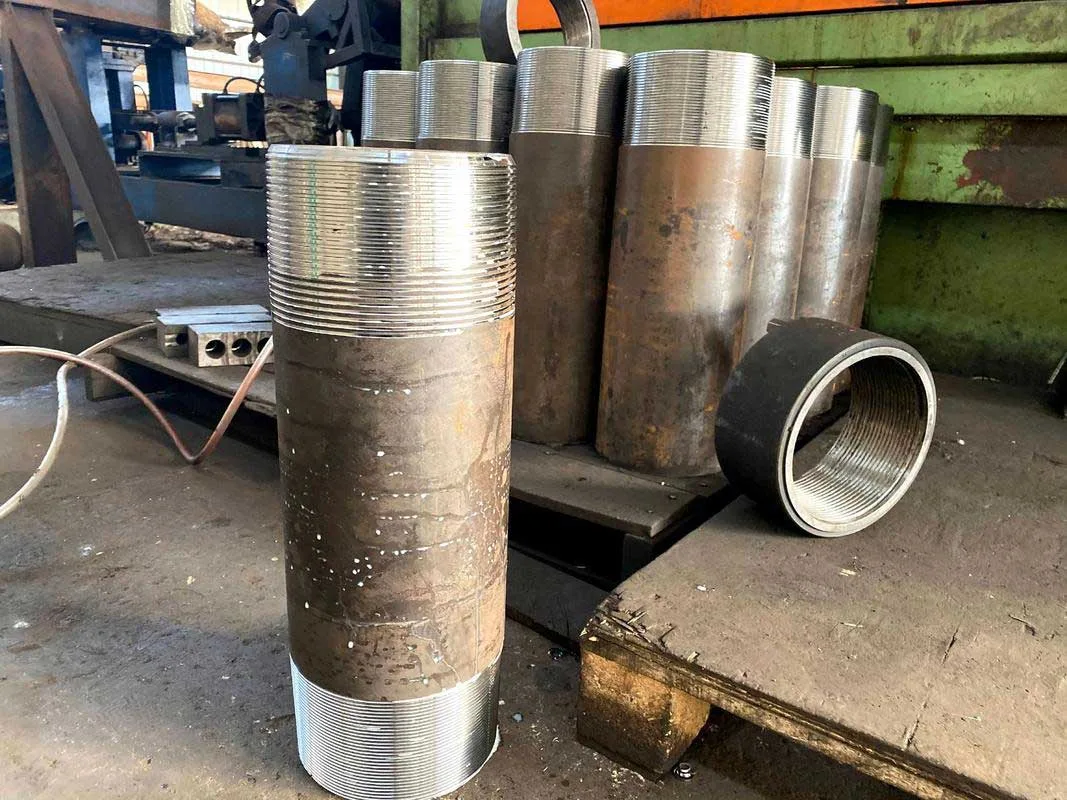

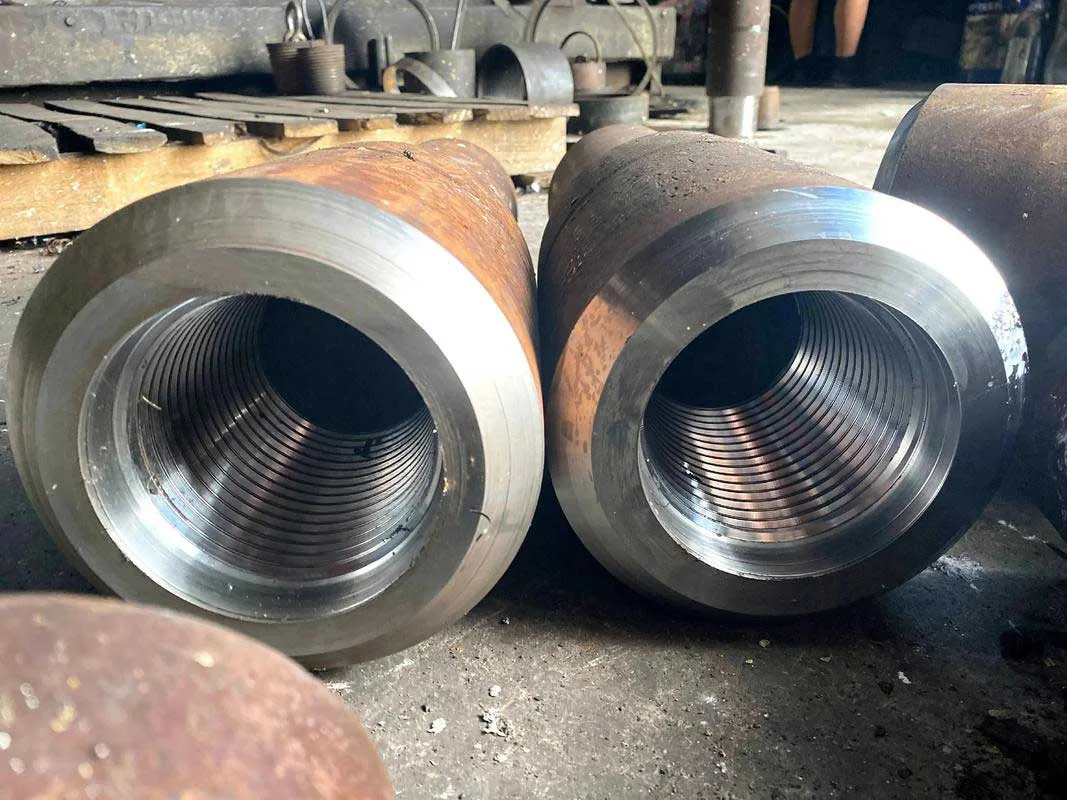

By thread type, they can be classified into: short-thread casing and its couplings, and long-thread casing and its couplings.
By steel strength, they can be classified into different steel grades, such as J55, K55, N80, L80, C90, T95, P110, Q125, V150, etc. Different steel grades are used depending on well conditions and depth.
II. Specifications and Appearance
The outer diameter of oil casing typically ranges from 114.3 mm to 508 mm.
Lengths are not fixed, ranging from 8 to 13 meters; however, API standards also specify three length categories: R-1 (4.88–7.62 meters), R-2 (7.62–10.36 meters), and R-3 (10.36 meters and longer).
Wall thickness varies with diameter; the API standard specifies a wall thickness range of 5.21 to 16.13 millimeters for various pipes. Generally, smaller-diameter casing has a thinner wall, while larger-diameter casing has a thicker wall.
III. Properties and Testing
Oil casing must possess sufficient strength and toughness to withstand complex downhole stress conditions.
IV. Production and Applications
Oil casing is typically manufactured from geological drilling steel through hot rolling or cold drawing.
Applications
Oil casing is widely used in the oil drilling industry and serves as the lifeline for maintaining well operations.
We also provide forging blanks and CNC precision machining services for our clients, covering industries such as energy, petrochemicals, steel, engineering machinery, plastics, prevention and control, hydraulics, healthcare, and food. Please feel free to send us drawings for inquiries.
Metalworking Services
CNC Machining
Sheet Metal Fabrication
Metal Welding
Metal Cutting
Metal Bending
Metal Punching
Metal Forging
Metal Sheet Rolling
Tube and Plate Drilling
Heavy Forging Press Capacity
Our heavy-duty forging presses support open-die forging and deformation of large-section forgings, including discs, shafts, blocks, and custom components. This capability enables us to meet the demanding forming requirements of heavy industrial applications.
Heat Treatment Capability
Heat treatment is a critical step in achieving the mechanical properties required for heavy-duty forgings. Our process capabilities meet the strength, toughness, and structural stability requirements for forged components used under demanding operating conditions.
Heavy Shaft Machining
We offer machining capabilities for large forged shafts and long cylindrical components, supporting both rough and finish machining. This capacity is suitable for stepped shafts, rotor shafts, rollers, and other heavy-duty forged shaft components.
Ring Forging Machining
Our machining facilities are capable of handling large ring-shaped forgings and circular parts that require precise turning, face machining, boring, and contour control. This capability is suitable for industrial ring blanks, heavy-duty circular parts, and machined ring forgings.
Cylindrical Forging Machining
We offer machining solutions for heavy-duty cylindrical, hollow, and tubular forgings. This capability supports the machining of sleeves, cylinders, and other thick-walled forged components used in pressure vessels, rotating systems, and general industrial applications.
Inspection & Testing
Quality control is integrated into our production process through the inspection and testing of forged and machined parts. Our capabilities help verify the dimensional accuracy, condition, and quality consistency of industrial forgings prior to delivery.
Packing & Delivery
Finished forgings are properly protected and packaged to minimize the risk of damage during storage and transportation. Our packaging methods ensure the safe domestic delivery and export shipment of machined and high-value forged components.
