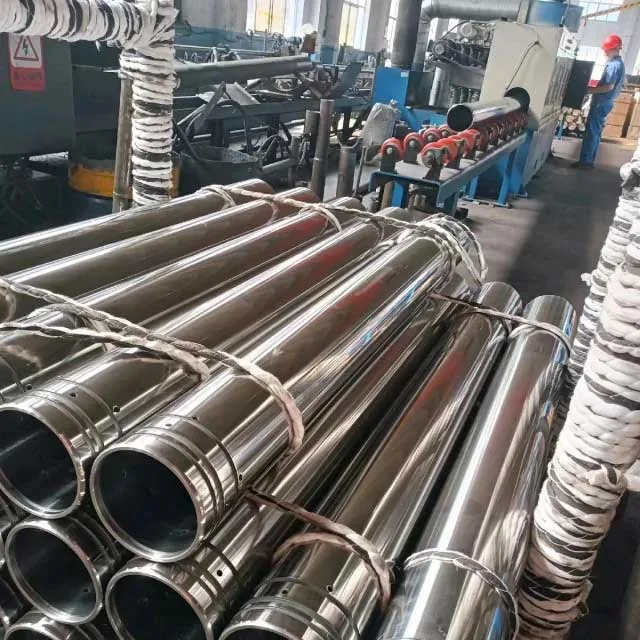

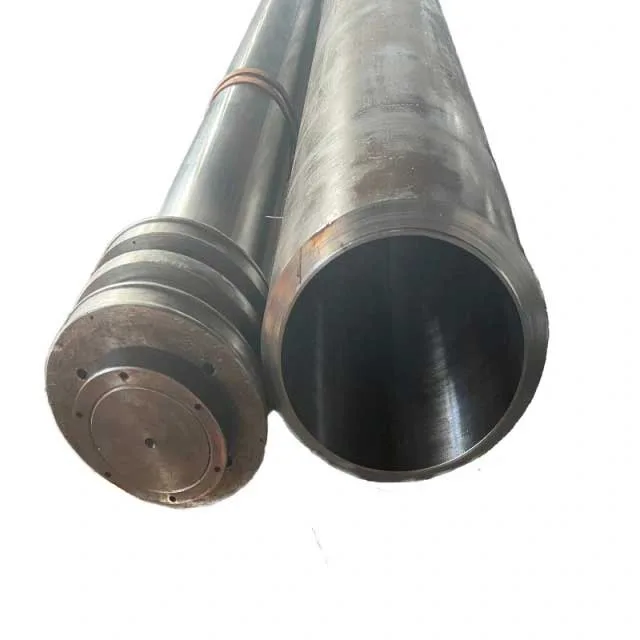

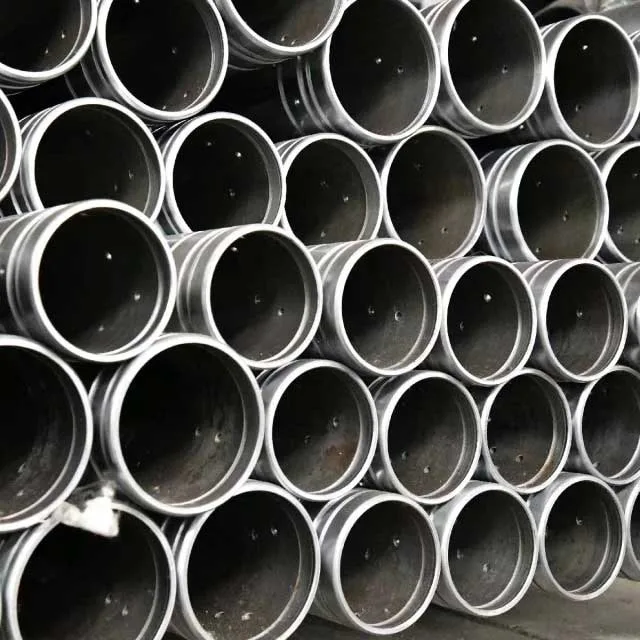

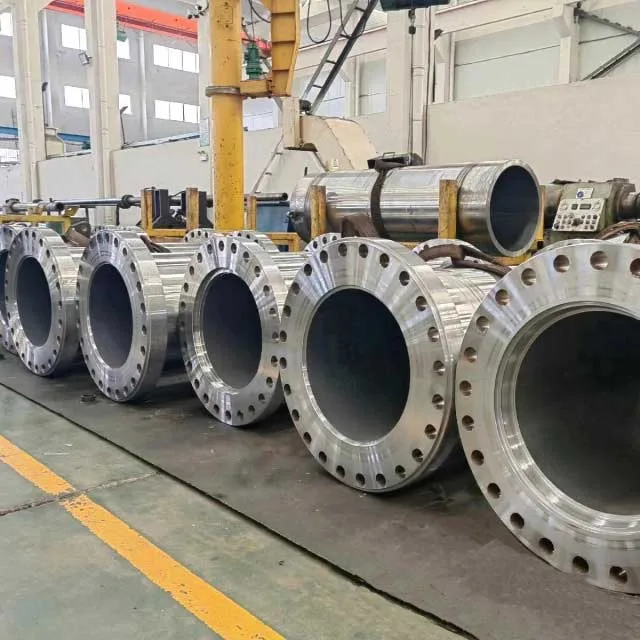

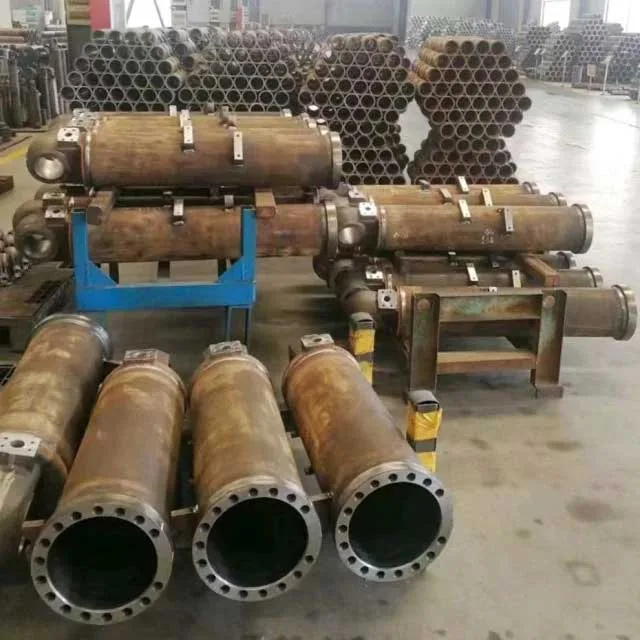

Cylinder Block – Cylinder Bore
The hydraulic cylinder body typically refers to a key component in a hydraulic system. It is closely related to the hydraulic cylinder.
The cylinder body/cylinder barrel is the main component of a hydraulic cylinder, housing the piston and hydraulic fluid.
It guides and supports the piston while withstanding the pressure generated by the hydraulic system.
It is typically made of high-strength metals such as carbon steel, stainless steel, or cast iron to ensure pressure resistance and durability.
The cylinder block/cylinder barrel is a key component of hydraulic or pneumatic cylinders, forming the main structure of the cylinder and providing a sealed space for piston movement.
Functions:
Piston Housing: Provides an operational passage for the piston and piston rod.
Pressure Resistance: Withstands internal pressure generated by hydraulic fluid or gas.
Guidance and Sealing: Ensures smooth piston movement and prevents fluid leakage through sealing mechanisms.
Structure:
Internal Wall Smoothness: The inner walls are precision-machined (e.g., honed or bored) to ensure low friction and excellent sealing performance.
End Construction: One end is fitted with a cylinder head and seals, while the other end connects to a base or mounting flange.
Fluid Ports: Connect to hydraulic or pneumatic lines to allow fluid or gas to flow in and out.
Materials:
Carbon Steel/Alloy Steel: Commonly used in high-pressure hydraulic systems due to their high strength and excellent wear resistance.
Stainless Steel: Used in special environments, such as corrosive conditions or food processing equipment.
Aluminum Alloy: Used in lightweight equipment and suitable for low-pressure systems.
Applications:
Industrial machinery (e.g., presses, injection molding machines)
Construction machinery (e.g., excavators, bulldozers)
Aerospace, marine, and automotive manufacturing sectors
We also provide forging blanks and CNC precision machining services for our clients, covering industries such as energy, petrochemicals, steel, engineering machinery, plastics, prevention and control, hydraulics, healthcare, and food. Please feel free to send us drawings for inquiries.
Metalworking Services
CNC Machining
Sheet Metal Fabrication
Metal Welding
Metal Cutting
Metal Bending
Metal Punching
Metal Forging
Metal Sheet Rolling
Tube and Plate Drilling
Heavy Forging Press Capacity
Our heavy-duty forging presses support open-die forging and deformation of large-section forgings, including discs, shafts, blocks, and custom components. This capability enables us to meet the demanding forming requirements of heavy industrial applications.
Heat Treatment Capability
Heat treatment is a critical step in achieving the mechanical properties required for heavy-duty forgings. Our process capabilities meet the strength, toughness, and structural stability requirements for forged components used under demanding operating conditions.
Heavy Shaft Machining
We offer machining capabilities for large forged shafts and long cylindrical components, supporting both rough and finish machining. This capacity is suitable for stepped shafts, rotor shafts, rollers, and other heavy-duty forged shaft components.
Ring Forging Machining
Our machining facilities are capable of handling large ring-shaped forgings and circular parts that require precise turning, face machining, boring, and contour control. This capability is suitable for industrial ring blanks, heavy-duty circular parts, and machined ring forgings.
Cylindrical Forging Machining
We offer machining solutions for heavy-duty cylindrical, hollow, and tubular forgings. This capability supports the machining of sleeves, cylinders, and other thick-walled forged components used in pressure vessels, rotating systems, and general industrial applications.
Inspection & Testing
Quality control is integrated into our production process through the inspection and testing of forged and machined parts. Our capabilities help verify the dimensional accuracy, condition, and quality consistency of industrial forgings prior to delivery.
Packing & Delivery
Finished forgings are properly protected and packaged to minimize the risk of damage during storage and transportation. Our packaging methods ensure the safe domestic delivery and export shipment of machined and high-value forged components.
