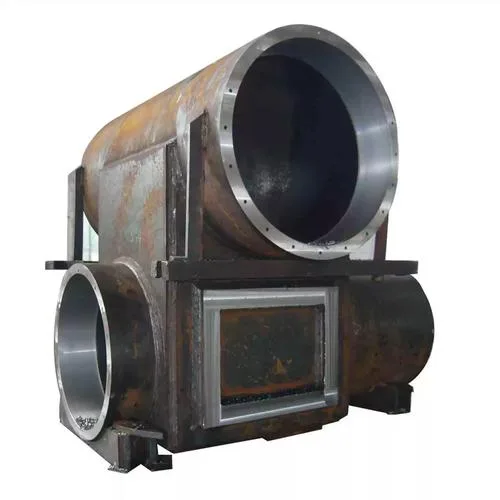

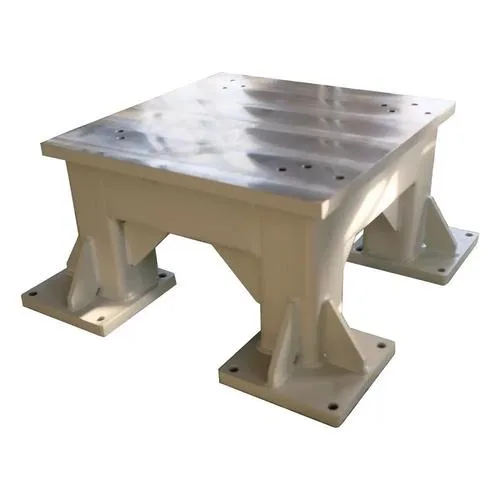

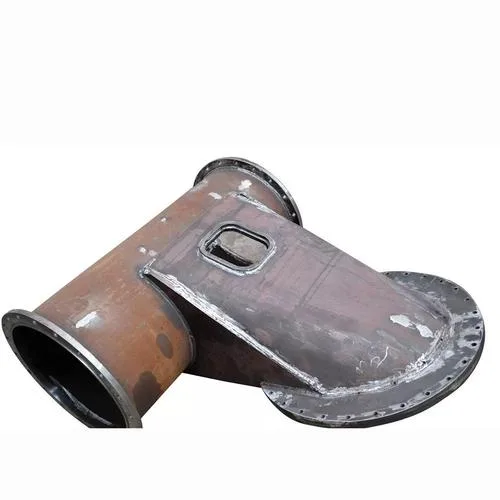

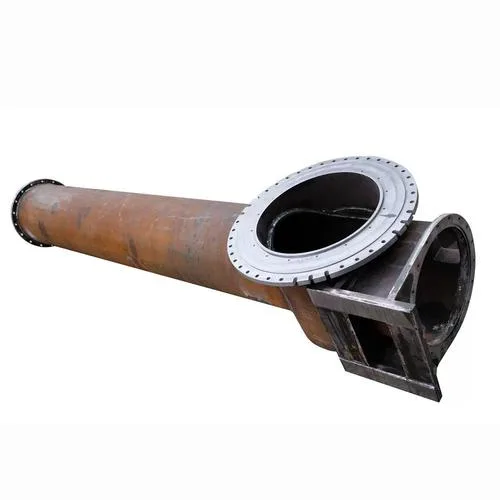

Structural component welding
The welding workshop is equipped with multiple welding machines, including CNC flame plasma cutting machines, fully digital submerged arc welding machines, and welding roller frames. Jingxiang adheres to industry standards such as ISO and GB, and holds multiple PQR process qualifications, enabling us to provide more professional and higher-quality welding products and services.
Welding Processes
Industry Standards: ASME, AWS, AS/ANS, GB
Weldable Materials: Carbon steel, alloy steel, stainless steel, duplex stainless steel, etc.
Welding Processes: Overlay welding, submerged arc welding, argon arc welding, shielded metal arc welding, etc.
Complete Equipment for Welding Structural Components
1. LH-2030 Fully Digital Submerged Arc Welding Machine
Dimensions: 2.2m × 2.6m
Load Capacity: 40T
2. W11-16x2500 Plate Rolling Machine
Ovalness: 3mm
3. HGZ40 Welding Roller Frame
Processing Diameter: 600-4500mm
Load Capacity: 40T
4. HOR-4000 CNC Flame Plasma Cutting Machine
Dimensions: 12m × 3m
Load Capacity: 30T
5. GB4232 Metal Band Saw
Cutting Thickness: 320mm
Load Capacity: 5T
We also provide forging blanks and CNC precision machining services for our clients, covering industries such as energy, petrochemicals, steel, engineering machinery, plastics, prevention and control, hydraulics, healthcare, and food. Please feel free to send us drawings for inquiries.
Metalworking Services
CNC Machining
Sheet Metal Fabrication
Metal Welding
Metal Cutting
Metal Bending
Metal Punching
Metal Forging
Metal Sheet Rolling
Tube and Plate Drilling
Heavy Forging Press Capacity
Our heavy-duty forging presses support open-die forging and deformation of large-section forgings, including discs, shafts, blocks, and custom components. This capability enables us to meet the demanding forming requirements of heavy industrial applications.
Heat Treatment Capability
Heat treatment is a critical step in achieving the mechanical properties required for heavy-duty forgings. Our process capabilities meet the strength, toughness, and structural stability requirements for forged components used under demanding operating conditions.
Heavy Shaft Machining
We offer machining capabilities for large forged shafts and long cylindrical components, supporting both rough and finish machining. This capacity is suitable for stepped shafts, rotor shafts, rollers, and other heavy-duty forged shaft components.
Ring Forging Machining
Our machining facilities are capable of handling large ring-shaped forgings and circular parts that require precise turning, face machining, boring, and contour control. This capability is suitable for industrial ring blanks, heavy-duty circular parts, and machined ring forgings.
Cylindrical Forging Machining
We offer machining solutions for heavy-duty cylindrical, hollow, and tubular forgings. This capability supports the machining of sleeves, cylinders, and other thick-walled forged components used in pressure vessels, rotating systems, and general industrial applications.
Inspection & Testing
Quality control is integrated into our production process through the inspection and testing of forged and machined parts. Our capabilities help verify the dimensional accuracy, condition, and quality consistency of industrial forgings prior to delivery.
Packing & Delivery
Finished forgings are properly protected and packaged to minimize the risk of damage during storage and transportation. Our packaging methods ensure the safe domestic delivery and export shipment of machined and high-value forged components.
