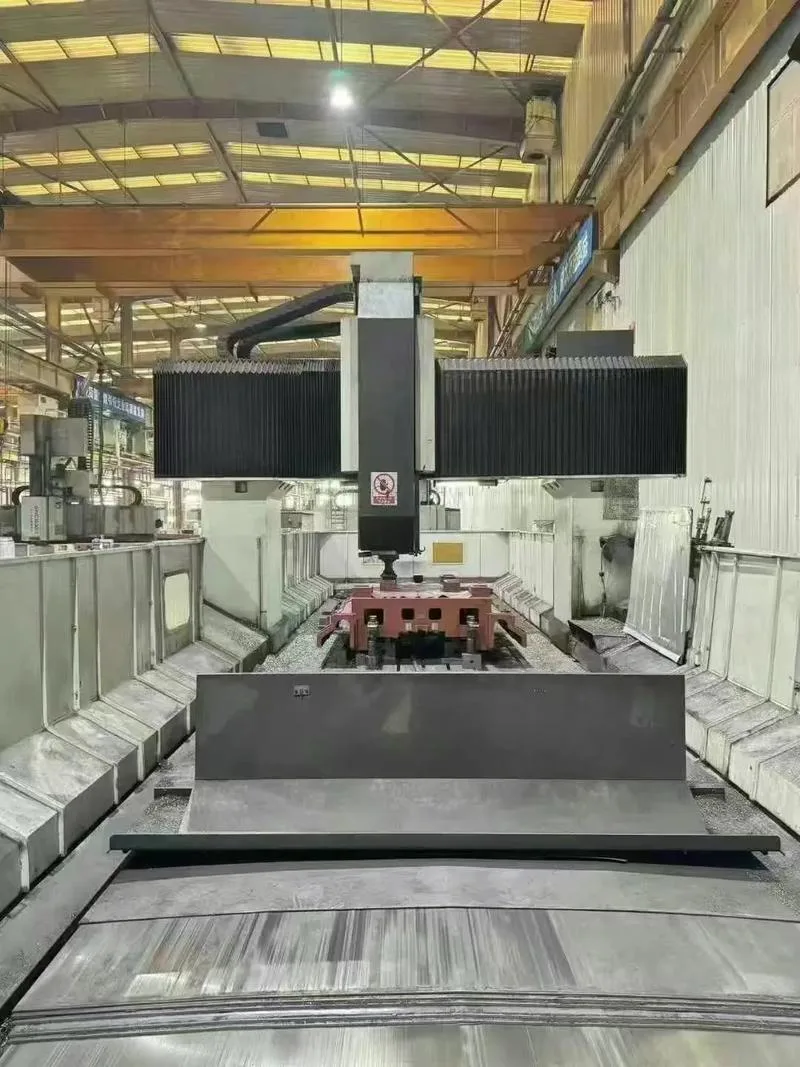

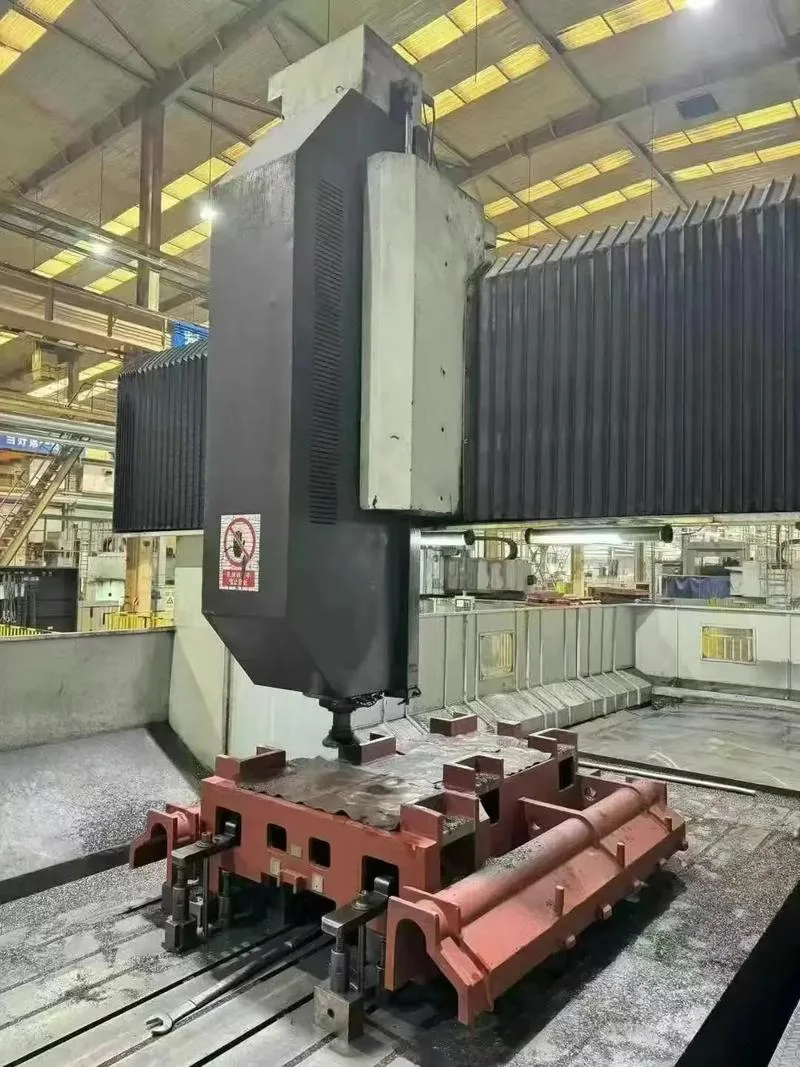

Gantry milling machining
The company owns dozens of high-precision machine tools manufactured by well-known domestic machine tool manufacturers, including Qi Er CNC floor-type boring and milling machines, Qi Er CNC high-speed double-column vertical lathes, and Bei Yi CNC gantry boring and milling machines. The largest gantry machine is 10 meters x 3 meters, the largest boring and milling machine is 6 meters x 2.5 meters, and the largest vertical lathe is 6.3 meters. The company is also equipped with a Hexagon coordinate measuring machine.
GM2420X40 Gantry Boring and Milling Machine
Equipment Dimensions
4.2m x 3.6m
Load Capacity
22 T
X-axis Travel
4200 mm
Y-axis Travel
3600 mm
Gantry Width/Height
2760 mm x 1700 mm

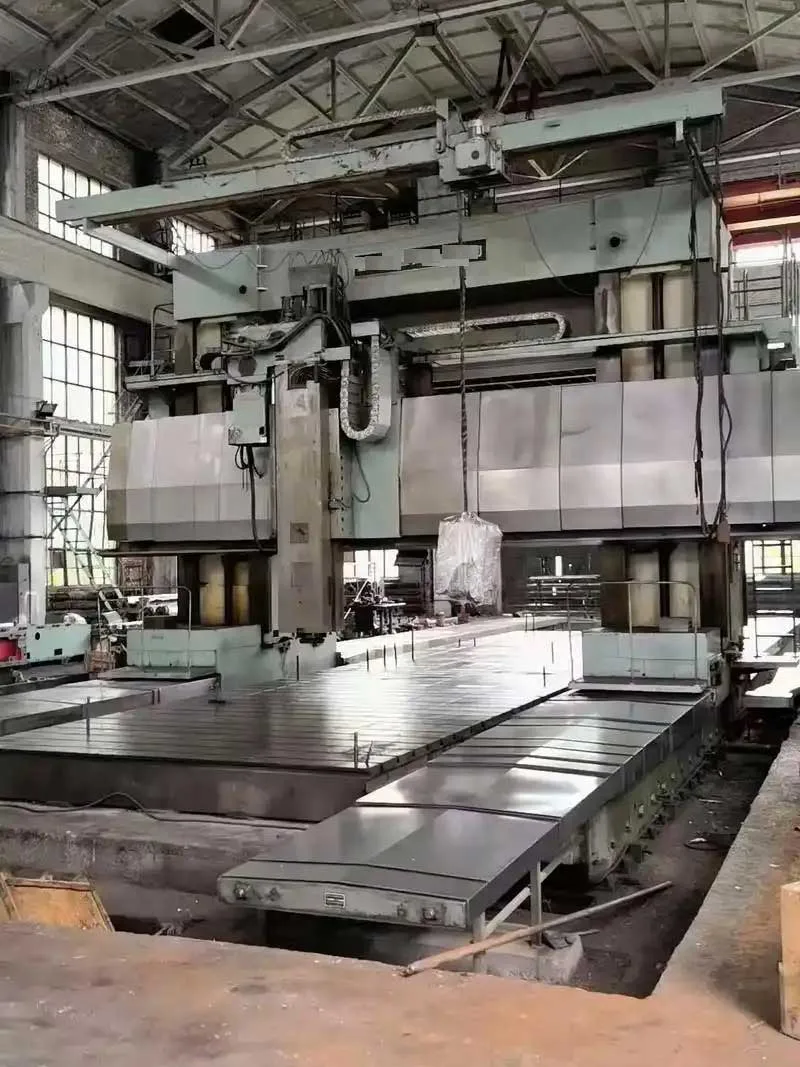

XK2130 CNC Gantry Boring and Milling Machine
Machine Dimensions
10 m x 3 m
Load Capacity
45 T
X-axis Travel
10500 mm
Y-axis Travel
4280 mm
Z-axis Travel
650 mm
GM2423 CNC Gantry Milling Machine
Machine Dimensions
4.2 m x 2.7 m
Load Capacity
18 T
X-axis Travel
4200 mm
Y-axis Travel
2700 + 650 mm
Z-axis Travel
1000 mm
We also provide forging blanks and CNC precision machining services for our clients, covering industries such as energy, petrochemicals, steel, engineering machinery, plastics, prevention and control, hydraulics, healthcare, and food. Please feel free to send us drawings for inquiries.
Metalworking Services
CNC Machining
Sheet Metal Fabrication
Metal Welding
Metal Cutting
Metal Bending
Metal Punching
Metal Forging
Metal Sheet Rolling
Tube and Plate Drilling
Heavy Forging Press Capacity
Our heavy-duty forging presses support open-die forging and deformation of large-section forgings, including discs, shafts, blocks, and custom components. This capability enables us to meet the demanding forming requirements of heavy industrial applications.
Heat Treatment Capability
Heat treatment is a critical step in achieving the mechanical properties required for heavy-duty forgings. Our process capabilities meet the strength, toughness, and structural stability requirements for forged components used under demanding operating conditions.
Heavy Shaft Machining
We offer machining capabilities for large forged shafts and long cylindrical components, supporting both rough and finish machining. This capacity is suitable for stepped shafts, rotor shafts, rollers, and other heavy-duty forged shaft components.
Ring Forging Machining
Our machining facilities are capable of handling large ring-shaped forgings and circular parts that require precise turning, face machining, boring, and contour control. This capability is suitable for industrial ring blanks, heavy-duty circular parts, and machined ring forgings.
Cylindrical Forging Machining
We offer machining solutions for heavy-duty cylindrical, hollow, and tubular forgings. This capability supports the machining of sleeves, cylinders, and other thick-walled forged components used in pressure vessels, rotating systems, and general industrial applications.
Inspection & Testing
Quality control is integrated into our production process through the inspection and testing of forged and machined parts. Our capabilities help verify the dimensional accuracy, condition, and quality consistency of industrial forgings prior to delivery.
Packing & Delivery
Finished forgings are properly protected and packaged to minimize the risk of damage during storage and transportation. Our packaging methods ensure the safe domestic delivery and export shipment of machined and high-value forged components.
