Hastelloy Forged Ring is a high-performance nickel alloy component designed for severe corrosion, high temperature and demanding industrial service. Compared with conventional stainless steel, Hastelloy alloys are selected when equipment must withstand aggressive chemical media, chloride-containing environments, reducing or oxidizing conditions and long-term operating stress.
Shanghai Changjin Metal Product Co., Ltd. supplies custom Hastelloy forged rings, seamless rolled rings and CNC machined Hastelloy rings according to customer drawings, material specifications and application requirements.
Common Hastelloy grades used for forged ring applications include:
| Grade | UNS | W.Nr. | Typical Characteristics |
|---|---|---|---|
| Hastelloy C276 | N10276 | 2.4819 | Excellent resistance to a broad range of aggressive chemical environments |
| Hastelloy C22 | N06022 | 2.4602 | Strong resistance to pitting, crevice corrosion and oxidizing media |
| Hastelloy B2 | N10665 | 2.4617 | Excellent resistance to reducing acids and severe chemical service |
| Hastelloy B3 | N10675 | 2.4600 | High corrosion resistance in demanding acid environments |
| Hastelloy X | N06002 | 2.4665 | High-temperature strength and oxidation resistance |
Among these materials, Hastelloy C276 Forged Ring and Hastelloy C22 Forged Ring are especially relevant to chemical processing and pollution-control equipment, while B-series alloys are commonly considered for strongly reducing acid environments. Final grade selection should always be confirmed against the customer's process media, temperature and specification.
Hastelloy rings can be manufactured to customer drawings in small, medium and large diameters. A typical custom project may involve:
These figures are manufacturing reference ranges rather than universal material limits. The practical size depends on Hastelloy grade, forging equipment, starting billet, ring-rolling capacity, heat treatment, machining allowance and final drawing requirements.
A typical manufacturing route is:
Material Verification → Billet Preparation → Controlled Heating → Upsetting & Piercing → Open Die Forging / Ring Rolling → Heat Treatment → Rough Machining → CNC Finish Machining → Inspection → Packing

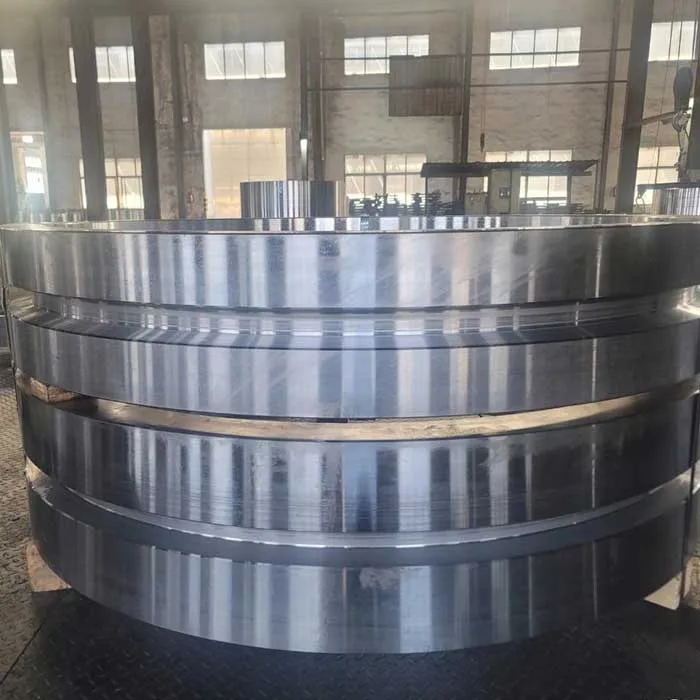

Forging and seamless ring rolling are used to produce a continuous ring without a welded joint. Depending on the design, the process can be optimized for dimensional accuracy, material utilization and the required mechanical properties. Heat treatment is selected according to the alloy and applicable specification.

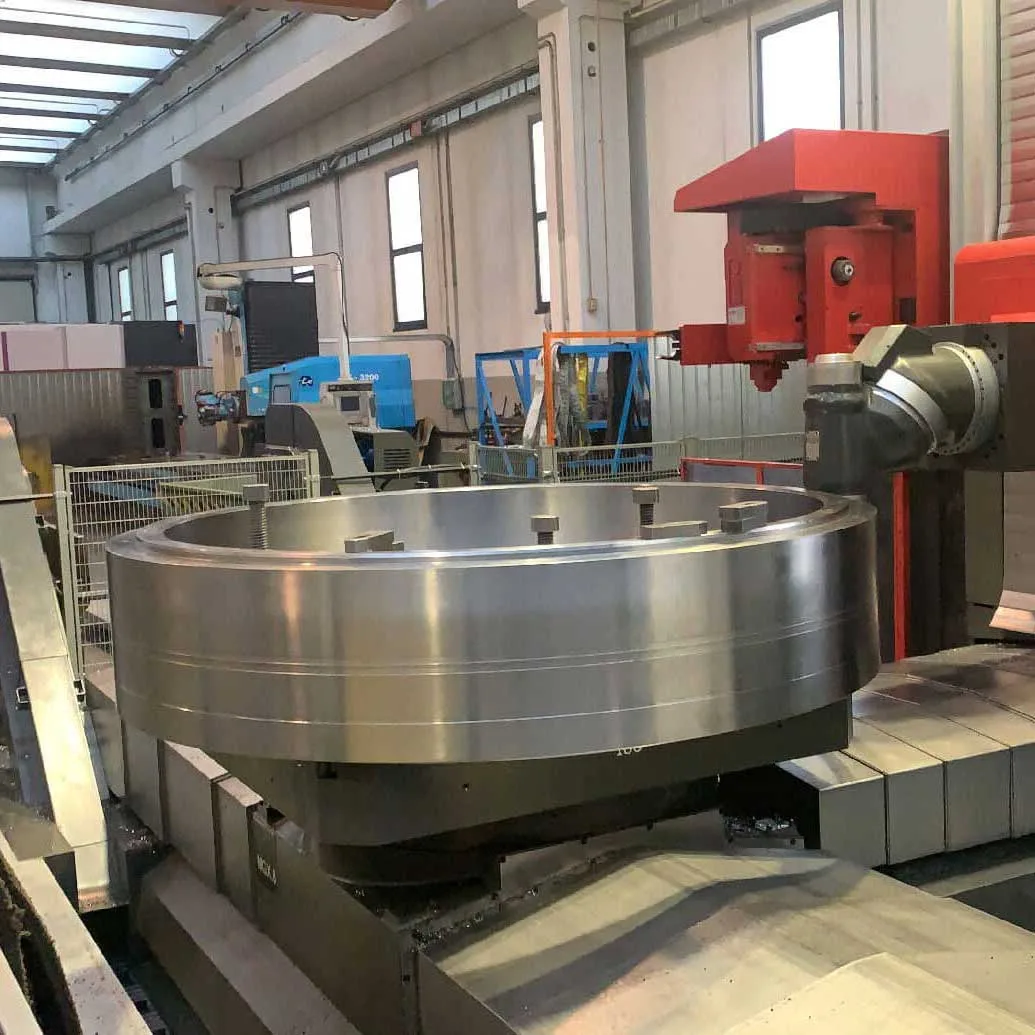

Many Hastelloy forged rings require machining after forging and heat treatment. Our machining scope can include:
Customers can purchase the ring as a forged blank, rough-machined ring or finished component. Manufacturing can be based on a 2D drawing, 3D model or detailed dimensional specification.
Chemical Processing: Hastelloy forged rings are suitable for reactors, heat exchangers, columns, valves, pumps, flanges and other equipment exposed to aggressive chemical media.
Oil & Gas: Custom nickel alloy rings can be used in corrosion-resistant valves, pressure equipment, flanges and components exposed to challenging production environments.
Pollution Control: C276 and C22 are widely considered for demanding flue-gas treatment and environmental process equipment where corrosion resistance is critical.
Power & Energy: Custom Hastelloy components can be manufactured for heat-transfer, process and high-temperature equipment where alloy selection is driven by temperature and corrosion conditions.
Pharmaceutical and Process Equipment: Corrosion-resistant nickel alloy rings can be supplied for custom equipment and components requiring clean, durable and chemically resistant materials.
For critical Hastelloy forged ring orders, inspection may include chemical composition, material traceability, mechanical testing, hardness testing, positive material identification (PMI), dimensional inspection, ultrasonic testing (UT) and liquid penetrant testing (PT), according to the purchase specification.
Material certificates and inspection documentation can be supplied according to the agreed standard, such as EN 10204 3.1, when required. Applicable ASTM/ASME, customer or project specifications should be confirmed before production.
Shanghai Changjin Metal Product Co., Ltd. supports custom Hastelloy forged ring projects from material sourcing and forging through heat treatment, machining and inspection. Our B2B manufacturing service is suitable for large diameter Hastelloy rings, seamless rolled rings, open-die forgings and CNC machined nickel alloy components.
To request a quotation, please send your Hastelloy grade, OD, ID, height, quantity, drawing, heat-treatment condition, machining requirements and inspection standard. We can evaluate the manufacturing route and provide an EXW or export quotation based on your project requirements.
We also provide forging blanks and CNC precision machining services for our clients, covering industries such as energy, petrochemicals, steel, engineering machinery, plastics, prevention and control, hydraulics, healthcare, and food. Please feel free to send us drawings for inquiries.
Metalworking Services
CNC Machining
Sheet Metal Fabrication
Metal Welding
Metal Cutting
Metal Bending
Metal Punching
Metal Forging
Metal Sheet Rolling
Tube and Plate Drilling
Our heavy-duty forging presses support open-die forging and deformation of large-section forgings, including discs, shafts, blocks, and custom components. This capability enables us to meet the demanding forming requirements of heavy industrial applications.
Heat treatment is a critical step in achieving the mechanical properties required for heavy-duty forgings. Our process capabilities meet the strength, toughness, and structural stability requirements for forged components used under demanding operating conditions.
We offer machining capabilities for large forged shafts and long cylindrical components, supporting both rough and finish machining. This capacity is suitable for stepped shafts, rotor shafts, rollers, and other heavy-duty forged shaft components.
Our machining facilities are capable of handling large ring-shaped forgings and circular parts that require precise turning, face machining, boring, and contour control. This capability is suitable for industrial ring blanks, heavy-duty circular parts, and machined ring forgings.

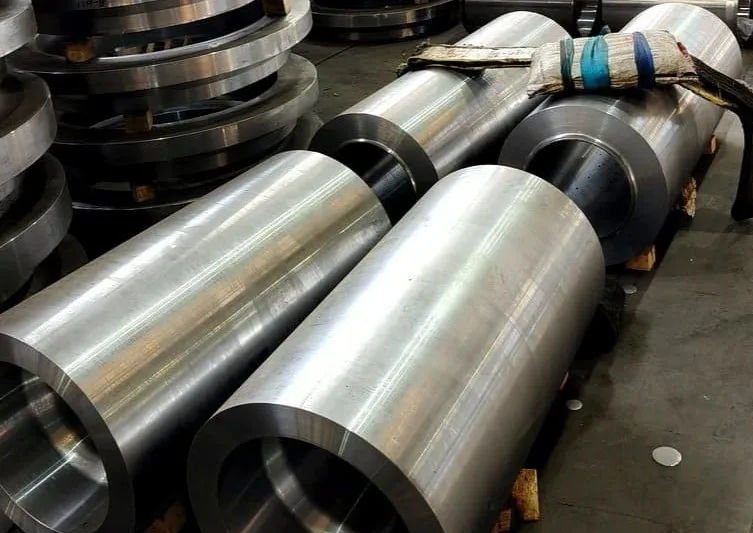

We offer machining solutions for heavy-duty cylindrical, hollow, and tubular forgings. This capability supports the machining of sleeves, cylinders, and other thick-walled forged components used in pressure vessels, rotating systems, and general industrial applications.
